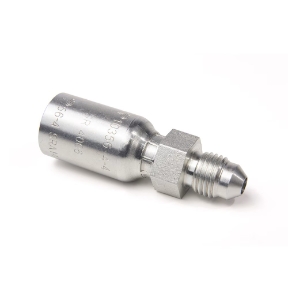

Male (JIC) 37° - Rigid Adapter
Nott P/N #10356-6-4
MFG #10356-6-4
Product Description
$ / each
QTY
• Materials of Construction - Steel
• Hose I.D. (inch) - 0.25
• Style - Male JIC 37° - Rigid - Straight
• Connection 2 Size - 9/16
• Length (inch) - 2.14
• Hex Size 1 - n/a
• Connection 2 Size - 9/16x18 inch Thread
• Division - Parflex Division
• Application - Public Works
• Application - Construction Equipment
• Application - Machine Tools
• Fitting Length - 54 mm
• Shipping Weight - 0.047 kg
• Configuration - Hose to Port
• Shipping Weight - 0.104 lb
• Hex Size 2 - n/a
• Media - Air (Pneumatic Media)
• Connection 2 Type - Male
• Industry - Off-road Machinery
• Media - Hydraulic Fluids
• Connection 2 Type - Rigid
• Coating - Chromium 6 Free-plated
• Shape - Straight
• Connection 1 Size - 6.35 mm (Hose I.D.)
• Connection Length - 30 mm (Cut-off allowance)
• Maximum Operating Pressure - 5000 psi (Dependent on hose)
• Tube Outside Diameter - n/a
• Application - Agriculture Equipment
• Technology - Fluid & Gas Handling
• Fitting Length - 2.14 inch
• Division - Parflex
• Hex Size - 11/16 inch
• Application - Industrial Hydraulics
• Connection Length - 1-3/16 inch (Cut-off allowance)
• Application - Material Handling Equipment
• Application - Utility Equipment
• Body Material - Steel
• Maximum Operating Pressure - 34.5 MPa (Dependent on hose)
• Connection 1 Size - 0.25 inch (Hose I.D.)
