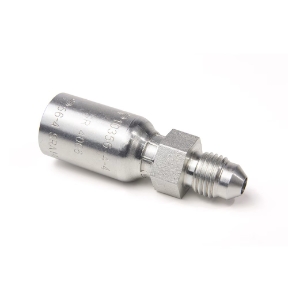

Male (JIC) 37° - Rigid Adapter
Nott P/N #10356-8-8C
MFG #10356-8-8C
Product Description
$ / each
QTY
• Materials of Construction - Stainless Steel
• Style - Male JIC 37° - Rigid - Straight
• Length (inch) - 2.4
• Hose I.D. (inch) - 0.5
• Connection 2 Size - ¾
• Application - Construction Equipment
• Application - Utility Equipment
• Body Material - Stainless Steel
• Application - Public Works
• Maximum Operating Pressure - 34.5 MPa (Dependent on hose)
• Connection 2 Size - 3/4x16 inch Thread
• Connection Length - 1-5/16 inch (Cut-off allowance)
• Shipping Weight - 0.091 kg
• Industry - Transportation
• Connection 2 Type - Male
• Media - Air (Pneumatic Media)
• Connection 2 Type - Rigid
• Configuration - Hose to Port
• Industry - Off-road Machinery
• Media - Hydraulic Fluids
• Hex Size - 7/8 inch
• Application - Material Handling Equipment
• Fitting Length - 2.4 inch
• Application - Agriculture Equipment
• Connection 1 Size - 0.5 inch (Hose I.D.)
• Hex Size 2 - n/a
• Tube Outside Diameter - n/a
• Application - Industrial Hydraulics
• Maximum Operating Pressure - 5000 psi (Dependent on hose)
• Connection 1 Size - 12.7 mm (Hose I.D.)
• Connection Length - 33 mm (Cut-off allowance)
• Hex Size 1 - n/a
• Technology - Fluid & Gas Handling
• Division - Parflex Division
• Shape - Straight
• Application - Machine Tools
• Fitting Length - 61 mm
