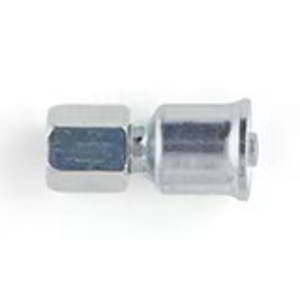

Female JIC 37° - Swivel Adapter
Nott P/N #10626-12-12
MFG #10626-12-12
Product Description
$ / EA
QTY
• Body Material - Steel
• Port Size - 12 mm
• Shape - Straight
• Hose Inside Diameter - -12
• Connection 2 Type - Female JIC 37°/SAE 45° Dual Flare – Swivel
• Connection 1 Size - -12 (Size)
• Specifications Met - ISO12151-5-SWS
• Industry - Industrial Manufacturing Equipment
• Brand - Parker
• Technology - Fluid & Gas Handling
• Connection 2 Type - JIC 37°/45° Flare SAE
• Connection 1 Type - Hose
• Connection 2 Size - 1-1/16x12 inch Thread
• Division - Polymer Hose Division Europe
• Configuration - Hose to Port
• Maximum Operating Pressure - 35.0 MPa
• Hex Size - 1-1/4 inch
• Connection Length - 34 mm
• For Fluid Type - Fuels (Diesel)
• Industry - Off-road Machinery
• Port Type - DKJ
• Connection 2 Type - Female
• Connection 1 Size - 3/4 inch (Hose I.D.)
• Division - Polymer Hose Division Europe
• Application - Air Brake Systems
• For Fluid Type - Lubricants (Oils)
• Coating - Chromium 6 Free-plated
• Maximum Operating Pressure - 350 bar
• Product Type - Crimp Fittings – No-Skive
• Fitting Length - 58 mm
• For Fluid Type - Petroleum Hydraulic Fluids (Petroleum Base)
