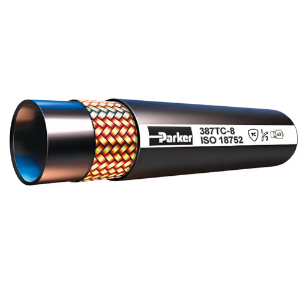

Hydraulic Hose
Nott P/N #387TC-24
MFG #387TC-24
Product Description
QTY
Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.
Features/Benefits:
• Standard or ToughCover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. by area compared to the SAE spiral hose
• 3,000 PSI constant working pressure in all sizes
• Lighter than the standard SAE spiral hose
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for sizes -4 to -20)
• 77 series fittings (for sizes -20 to -32)
Weight:
2.99 kg/m, 2.01 lb/ft
Disclaimer:
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Minimum Operating Temperature:
-40 °F, -40 °C
Minimum Bend Radius:
250 mm, 10 inch
Hose I.D. (size):
-24
Media:
Lubricants, Petroleum Hydraulic Fluids
Specifications Met:
ISO 18752, Type CC, MSHA TC & ST covers only
Compatible Fitting:
77 Series
Inside Diameter:
1-1/2 inch, 38 mm
Application:
Lubricating Oils, Petroleum Base Hydraulic Fluids
Hose Reinforcement Material:
4 Spirals
Nominal Hose Inside Diameter:
38 mm
Outside Diameter:
2.080 inch, 52.8 mm
Maximum Operating Pressure:
3000 psi, 21 MPa, 210 bar
Hose Inner Tube Material:
Synthetic Rubber
Cover Material:
Synthetic Rubber Abrasion Resistant
Maximum Operating Temperature:
257 °F, 125 °C
Hose Cover Type:
Tough Cover
Size:
-24
Hose Cover Type:
ToughCover
