Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose
Nott P/N #787TC-4-RL
MFG #787TC-4
Product Description
QTY
Minimum Operating Temperature:
-40 °F, -40 °C
Media:
Lubricants, Petroleum Hydraulic Fluids
Specifications Met:
ISO 18752, Type AC, MSHA TC, ST CP covers only
Compatible Fitting:
43 Series
Inside Diameter:
1/4 inch, 6.3 mm
Application:
Lubricating Oils, Petroleum Base Hydraulic Fluids
Hose Reinforcement Material:
2 Braids of Steel Wire
Weight:
0.31 kg/m, 0.21 lb/ft
Outside Diameter:
0.510 inch, 13 mm
Maximum Operating Pressure:
5000 psi, 35 MPa, 350 bar
Minimum Bend Radius:
2 inch, 50 mm
Hose I.D. (size):
-4
Maximum Operating Temperature:
212 °F, 100 °C
Hose Inner Tube Material:
Proprietary Synthetic Rubber Compound
Cover Material:
Synthetic Rubber
Size:
-4
Hose Cover Type:
ToughCover

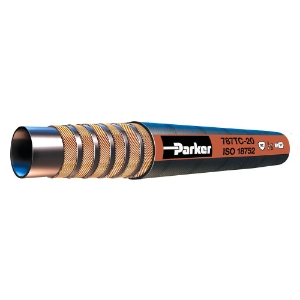

Parker’s 787 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 5,000 PSI in all sizes. The 787 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 787 hose is designed, built, and tested to meet ISO 18752 performance specifications. Sizes range from ¼” to 2” in diameter with different cover options available for various markets.
Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover, SuperTough and Critical Protection cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. compared to standard SAE spiral hose
• Twice the impulse/life – tested to 2,000,000 cycles
• 5,000 PSI constant working pressure in all sizes
• Lighter than the standard SAE spiral hose
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 Series fittings (for -4 to -6)
• 77 series fittings (for -8 to -32)
