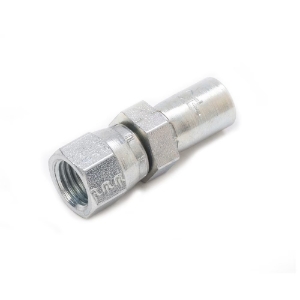

Female SAE (JIC) 37° Swivel Adapter
Nott P/N #106CY-4-2
MFG #106CY-4-2
Product Description
$ / EA
QTY
• Body Material - Steel
• Product Style - Female SAE (JIC) 37° Swivel
• Style - Female JIC 37° - Swivel - Straight
• Connection 2 Size - Flare 7/16x20
• Shape - Straight
• Hose I.D. (inch) - 0.125
• Notes - -4 incorporates a dual seat
• Length (inch) - 1.59
• Industry - Industrial Manufacturing
• Media - Oil
• Maximum Operating Pressure - 41.4 MPa
• Division - Parflex
• Hex Size 1 - n/a
• Application - Industrial Hydraulics
• Application - Lubrication
• Connection 2 Type - Female
• Coating - Chromium 6 Free-plated
• Media - Water
• Application - Diagnostic
• Technology - Fluid & Gas Handling
• Connection 2 Type - 37° Flare Swivel
• Maximum Operating Pressure - 6,000 psi
• Application - Construction Equipment
• Application - Agriculture Equipment
• Connection 1 Size - 0.125 inch (Hose I.D.)
• Configuration - Hose to Port
• Application - Material Handling Equipment
• Product Type - Hose Fittings
• Media - Hydraulic Fluids
• Application - Fluid Control
• Specifications Met - n/a
• Body Material - Steel
• Fitting Length - 40.386 mm
• Connection 2 Size - Flare 7/16x20 inch (Thread Size)
• Connection Length - 25.0 mm
• Shape - Straight SAE
• Connection Length - 1.0 inch (Cut-off allowance)
