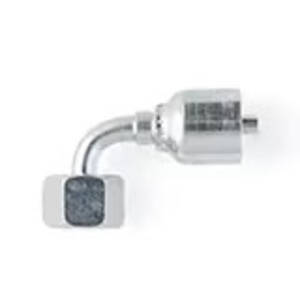

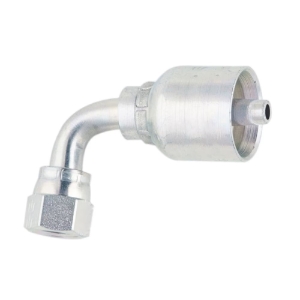

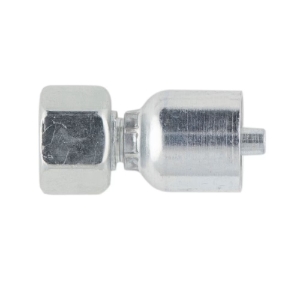

Crimp-style 77 Series hydraulic hose fittings from Parker Hannifin are cost-effective, permanent, bite-the-wire-style fittings for high-pressure applications. Designed for use with Parkrimp crimpers, 77 series fittings require less push-on force and are easy to assemble. Their compact, one-piece construction delivers better value, flow, and reduced heat and pressure loss, as well as reduced complexity. Compatible with a wide range of constant working pressure hoses, 77 Series fittings are engineered for efficiency, safety, and performance. When paired with Parker’s No-Skive hose, 77 Series fittings can be assembled without removing the outer hose cover. Available in multiple materials and a wide assortment of end configurations, 77 series fittings are offered in sizes from ¼ inch to 2 inches.

Markets:

• Military

• Construction

• Forestry

• Oil Field Service

• Industrial

• Mining

Features/Benefits:

• Metric hex

• Easy push on force

• Multiple materials available, such as steel and stainless steel

• Wide range of end configurations

• One piece reduces complexity and leakage path

• No-Skive technology offers easy, efficient, and safe production processes

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Hoses:

• 387 (-20 through -32 only)

• 487 (-20 through -32 only)

• 787 (-8 through -32 only)

• 797 (-8 through -32 only)
