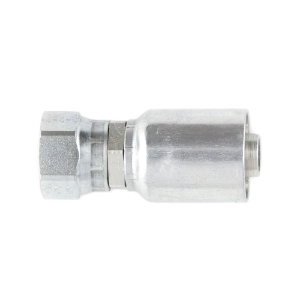

Female - Swivel Adapter
Nott P/N #1JC43-10-10
MFG #1JC43-10-10
Product Description
$ / EA
QTY
• Hex Size 1 - 1-1/8 inch
• Connection 1 Type - Hose
• Product Type - Crimp Fittings – No-Skive
• Configuration - Hose to Port
• Application - General Industrial
• Application - Machine Tools
• Industry - Industrial Manufacturing Equipment
• For Fluid Type - Petroleum Hydraulic Fluids (Petroleum Base)
• Maximum Operating Pressure - 41.0 MPa
• Fitting Length - 63 mm (see drawing legend A)
• Shape - Straight - Short
• Industry - Off-road Machinery
• Maximum Operating Pressure - 410 bar
• Connection 1 Size - -10 (Size)
• For Fluid Type - Lubricants (Oils)
• Connection 2 Size - 1x14 inch Thread
• Connection 1 Size - 5/8 inch Hose I.D.
• Specifications Met - ISO 12151-1-SWSA, SAE J516
• For Fluid Type - Petroleum Hydraulic Fluids (Phosphate-ester)
• Body Material - Steel
• Hex Size 2 - 15/16 inch
• Connection Length - 27 mm
• Industry - Oil & Gas
• Application - In-Plant Automotive
• Technology - Fluid & Gas Handling
• Connection 2 Type - Female
• Fitting Length - 63 mm
• Connection 2 Type - Seal-Lok
• Port Type - ORFS
• Connection 1 Size - 15.9 mm Hose I.D.
• Body Material - Steel
• Shape - Straight - Short
• Connection 2 Type - Female Seal-Lok®/ORFS - Swivel
• Connection 2 Size - 5/8"
