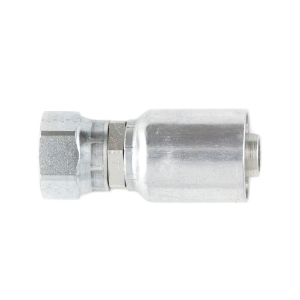

Female - Swivel Adapter
Nott P/N #1JC43-6-6
MFG #1JC43-6-6
Product Description
$ / EA
QTY
• Body Material - Steel
• Shape - Straight - Short
• Connection 2 Type - Female Seal-Lok®/ORFS - Swivel
• Hose I.D. (size) - -6
• Connection 2 Size - 3/8"
• Maximum Operating Pressure - 63.5 MPa
• Configuration - Hose to Port
• Industry - Transportation
• Application - In-Plant Automotive
• Connection 2 Size - 11/16x16 inch Thread
• Specifications Met - ISO 12151-1-SWSA, SAE J516
• Technology - Fluid & Gas Handling
• Division - Polymer Hose Division Europe
• Hex Size 1 - 13/16 mm (see drawing legend W)
• Industry - Off-road Machinery
• Application - Machine Tools
• Shape - Straight - Short
• Fitting Length - 49 mm (see drawing legend A)
• Connection 1 Size - 9.5 mm Hose I.D.
• Connection 2 Type - Swivel
• For Fluid Type - Petroleum Hydraulic Fluids (Petroleum Base)
• Industry - Oil & Gas
• Hex Size 2 - 11/16 inch
• Hex Size 2 - 11/16 inch (see drawing legend H)
• Connection Length - 23 mm (see drawing legend B)
• Connection 1 Size - 3/8 inch Hose I.D.
